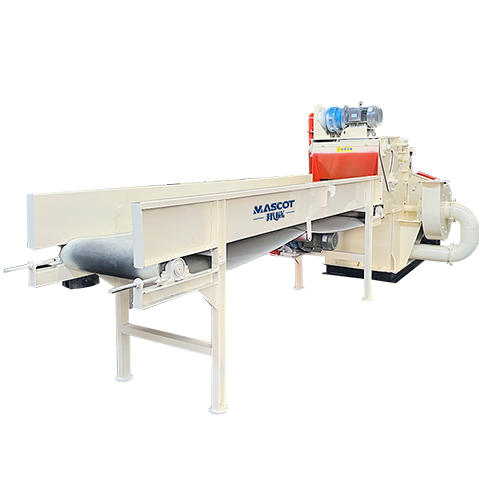

Forced Feed Wood Crusher

forced feed wood crusher is a mechanical device used to process large wood chips, such as lumber or palm wood, into fine particles.

0.3~8

Capacity(t/h)
18.5~55

Power(kw)

Fruit branches, waste bark, waste wood, straw, corn cobs, wood, fruit branches, logs, moso bamboo, reed poles, straw
Fruit branches, waste bark, waste wood, straw, corn cobs, wood, fruit branches, logs, moso bamboo, reed poles, straw

Consult now

mascot@mascotenv.com

Application Industry

It is widely used in sand making, granulation, chimney ash crushing, coal crushing, wood crushing and other industries.

Branches
STRAW
Wood
Wooden Pallets

Product introduction

Forced feed wood crusher is a special mechanical equipment specially used to crush wood. It is improved on the basis of the famous Hammer Mill. Compared with the ordinary Hammer Mill, the forced feed wood crusher has higher efficiency and finer crushing size. It has strong crushing ability and can crush the wood into fine particles to achieve wood crushing of different shapes and sizes. .

Automatic feeding, saving time and effort.
The inner shell of the main machine of the forced-feed wood crusher is equipped with a wear-resistant lining board, which is strong and durable.
The forced wood crusher uses the principle of magnetic roller extrusion to work more efficiently and has a higher discharge rate.

mature project design, and complete
after-sales service process.

+86-15093222637

Consult now

Working principle

1.The forced-feed wood crusher integrates blade cutting and high-speed airflow impact, collision, and dual crushing functions, and can complete the fine material sorting and processing process.
2.During the cutting and crushing process of the blade, the rotor generates high-speed airflow, which rotates in the cutting direction of the blade. The material is accelerated and impacted repeatedly in the airflow, so that the material is double crushed in the wood crusher at the same time, accelerating the crushing rate of the material.

Performance parameter

Model	Power(KW)	Fan Power(KW)	Rotarting Speed(rpm)	Feeding Port Size(mm)	Capacity(TPH)	Main Machine Weight(Kg)
600	18.5-22	3	3400	300x200	0.3-0.8	360
800	37-45	5.5	2200	630x250	0.8-2	1500
1000	55-75	7.5	2200	1000x300	1.5-3	2200
1300	45x2	7.5	2200	800x300	2.5-5	2600
1500	55x2	11	2200	1300x350	3-8	3800

*Note： Any change of technical data shall not be advised additionally.

Production case
