Application Industry

Application scope of double-shaft shredder machine : Plastics, rubber, tires, fibers, paper, wood, iron barrels, waste electrical appliances, waste cables, industrial waste, domestic garbage and so on.
Application scope of shredder machine : Plastics, rubber, tires, fibers, paper, wood, iron barrels, waste electrical appliances, waste cables, industrial waste, domestic garbage


Product introduction

Product introduction
  • Introduction
  • Feature

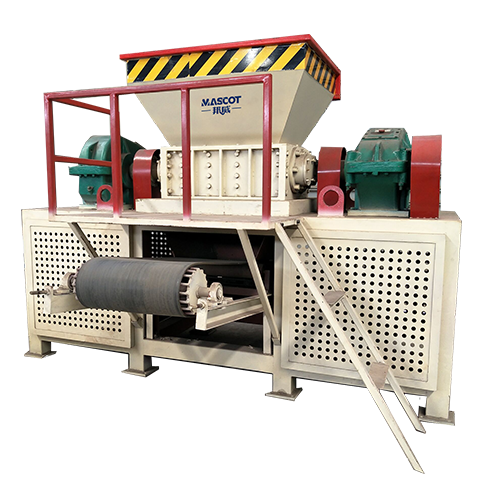

Double-shaft shredder machine is a solid waste volume reduction mechanical environmental equipment,mainly be composed of the blade shaft,fixed blade,bearing box,box holder,feed system,power system,electrical control system. Generally used for the treatment of unprocessed materials or leftover materials and making its size more small.
  • Double shaft shredding machine is suitable to process very big size of plastic material, such as plastic pipe, plastic board, wood, woven bags, tire, aluminum cans, the little diameter of copper wire, and pressing plastic film which the single Shaft plastic shredder can not process.
  • The machine with a big feeding mouth, can put the big plastic product freely.
  • The rotary blade and cutting blade and blade edge with special design, can get very high efficiency and high capacity
  • The machine is controlled by a PC system. The knife can be rotated in opposite direction and also can close automatically if something unexpected happens, with very high safety service
  • The knife material is made of alloy steel with high quality and a long lifetime.
mature project design, and complete
after-sales service process.

+86-15093222637

Consult now

Working principle

Double shaft shredder is composed of motor, hard tooth surface reducer, rotating cutter shaft, movable knife, frame, stand, box body, working platform and other main structures. Mount fixed knife frame, rotating knife shaft is equipped with removable inserts the knife. The knife number according to the size of the different models and rotating knife shaft and decide. Can removed after using a blunt knife again, save maintenance cost greatly, increase the service life of the machine.
Working principle

Performance parameter

Model 1900 1500 1200 1000 600
Main shaft power(kw) 4-90*2 4-45*2 4-37*2 4-30*2 4-15*2
Main shaft speed(r/min) 30-40 30-40 30-40 30-40 30-40
capacity(t/h) 10-25 8-18 6-15 5-10 2-5
weight(t) 15 12 6 5 2.5
Feeding Power(kw) 4-3 4-3 None None None
Blade Qty 50 46 42 34 20
  Different materials, the Qty of blade claws and blades are different, and can be customized.
Blade Dia.(mm) Φ600 Φ550 Φ400 Φ400 Φ400
Output Size(cm) 3-10 3-10 3-10 3-10 3-10
Hopper Size(m) 2.3*2 2*2 1.4*1 1.2*1 0.82*0.9
Overall Dimension (L*W*H)(m) 8*2.5*2.4 4*1.7*2.4 3.2*2*1.9 3*2*1.9 2.6*2*1.9

*Note： Any change of technical data shall not be advised additionally.

Production case

Wood crushing
