Application Industry

The finished materials can be used as mulch, garden bed foundation, organic fertilizer, edible fungi, biomass power generation, or used in the production of high-density boards, particleboards, paper industry, etc.


Product introduction

Product introduction
  • Introduction
  • Feature

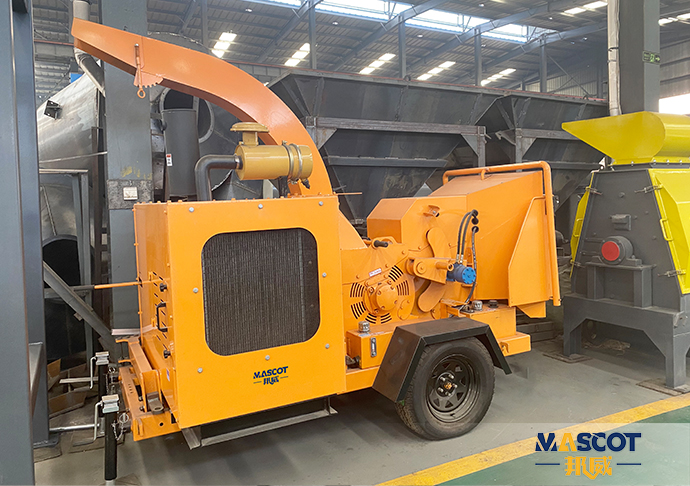

Diesel engine mobile wood chipper is also known as a wood chipper, it integrates slicing and crushing into one. It can cut branches with a diameter of 30-40 cm. It is mainly used to process pine, miscellaneous wood, sapling, fir, bamboo and other materials. It is more suitable for processing edible fungus culture media. of sawdust. At the same time, the wood crusher grinder can also be used for fibrous straw-shaped chips such as bamboo, thatch, corn straw, sorghum straw, etc.

The wood chipper is equipped with a hydraulic feed roller, which improves work efficiency.
The blade is made of special alloy, so it is more durable.
Fully automatic operation saves both costs and labor.
Small size, high production efficiency, low investment and high profit return.
mature project design, and complete
after-sales service process.

+86-15093222637

Consult now

Working principle

When the branches are put into the feed port. After the branches are squeezed and broken by the pressure roller, the branches are squeezed and cut into small pieces of wood through the cutting operation of the blade on the knife roller. The small pieces of wood flow out directly from the upward spray outlet.
Working principle

Performance parameter

Model 600 800 1000 1200 1500
Feeder Size(mm) 150 200 250 300 350
Discharge Size(mm) 5-50
Diesel Engine Power(hp) 35 65 102 200 320
Rotor Diameter(mm) 300*320 400*320 530*500 630*600 850*600
Blades(pcs) 4 4 6 6 9
Capacity(kg/h) 800-1000 1500-2000 4000-5000 5000-6500 6000-8000
Oil Tank Capacity(l) 25 25 80 80 120
Hydraulic Oil Tank Capacity(l) 20 20 40 40 80
Weight(kg) 1650 1950 3520 4150 4800

*Note： Any change of technical data shall not be advised additionally.

Production case

Wood crushing
