Application Industry

1.Sports venues: runway, school sports fields, garden trail, bowling alleys, sidewalks, tennis and basketball courts.
2.Automotive industry: strips, floor mats for trains, brake disc belts, floors/underbody seals for cars and trucks, sealing strips, buffers, shock absorbers
3.Construction/Equipment: Adhesives, sealants, medical equipment, insulating materials, carpet underlayment, roof and wall waterproofing materials
4.Geotechnical/asphalt: drainage pipes, filters, soil conditioning/pavement covering, railway crossings, road and driveway laying
5.Recycled rubber: To re-make various rubber products
6.Thermal cracking recycling
Application scope of shredder machine : Plastics, rubber, tires, fibers, paper, wood, iron barrels, waste electrical appliances, waste cables, industrial waste, domestic garbage


Product introduction

Product introduction
  • Introduction
  • Feature

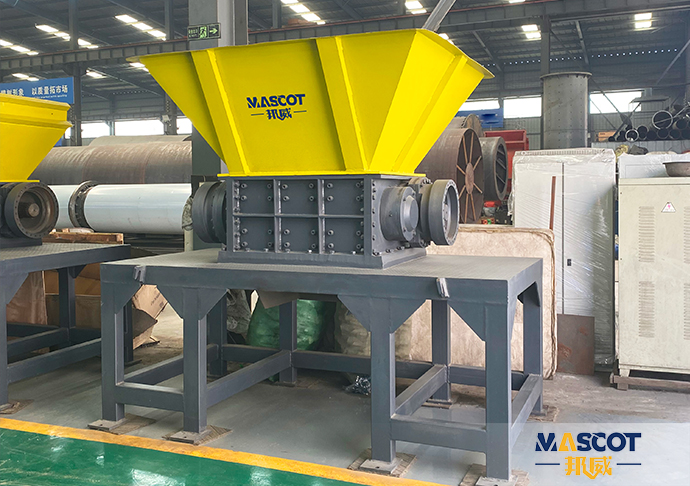

Waste tire shredder is specially designed for shredding tires with large volume, thickness and hardness. This shredder can effectively shred rubber tires, bias tires, radial tires and car tires, etc. The waste tire shredder uses rotating blades to gradually break the waste tires into small pieces or fragments by crushing, extruding and shearing. At the same time, the shredder also has the functions of screening and dust removal, which can classify and filter the broken tire blocks and remove metals and impurities.

  • Dual motor + Dual reducer drive system, low speed, high torque and strong tearing ability;
  • German high alloy steel cutting tools, wear-resistant and durable, long service life;
  • High alloy steel spindle, high precision machining, good mechanical strength and strong impact resistance;
  • Fixed knives are set on both sides of the knife box to prevent material winding, which can be disassembled independently and easy to maintain;
  • Self aligning roller bearing, 4-fold sealing, effective dustproof and waterproof;
  • PLC control system, current monitoring, overload protection, automatic reverse rotation, protection of motor and tool;
  • The equipment has long service life and low maintenance cost.
mature project design, and complete
after-sales service process.

+86-15093222637

Consult now

Working principle

Waste tire shredder is designed with the structure of shredder and ring roller screen in one. When the tire enters the shredding chamber, it is sheared and torn by the relative rotating cutters, and then falls onto the rotating ring roller screen. The material that passes through the screen holes falls off directly, while the material that does not pass through the screen holes is brought back to the shredding chamber and is repeatedly sheared by the cutters until it passes through the screen holes.
Working principle

Performance parameter

Model Size(L*W*H)(mm) Feed Inlet Size(mm) Blade Diameter(mm) Blade Thickness(mm) Blade Quantity Power(kw) Weight(kg)
SZ-500 2800*1300*1850 500*480 200 20 24 11*2 2200
SZ-800 3000*1300*1850 800*480 200 20 40 15*2 2500
SZ-1000 3300*1900*2200 1000*690 300 40 24 22*2 5200
SZ-1200 3600*2000*2200 1200*690 330 40 30 30*2 6400
SZ-1500 4180*2100*2400 1500*690 550 50/75 30/20 55*2 9000
SZ-1800 5800*2400*3300 1800*1206 550 50/75 36/24 75*2 13600
SZ-2000 6400*2700*3500 2000*1490 600 50/75 40/26 90*2 20100
SZ-2500 7500*3200*3800 2500*1800 600 75/100 32/24 110*2 25000
SZ-3000 8600*3500*4000 3000*1800 600 75/100 40/30 160*2 31000

*Note： Any change of technical data shall not be advised additionally.
